DC 10V-22V Converter 24V 3A Max 72W Voltage Converter, DC to dc 12V to 24V Boost Converter Adapter Power Supply Voltage Regulator- IP67 Waterproof for Automobile, Instruments etc.

Price: ₹1,688 - ₹1,499.00
(as of Jan 28, 2026 12:04:25 UTC – Details)


12V ila 24V güç amplifikörü Özellikler:
Input: DC 10-22V
Rated input voltage: 12V
Output: DC 24V 3A (max)
Waterproof: IP67
Working temperature: -20°-65
Storage temperature: -40°-85
No load control: 1
Load regulation: 2

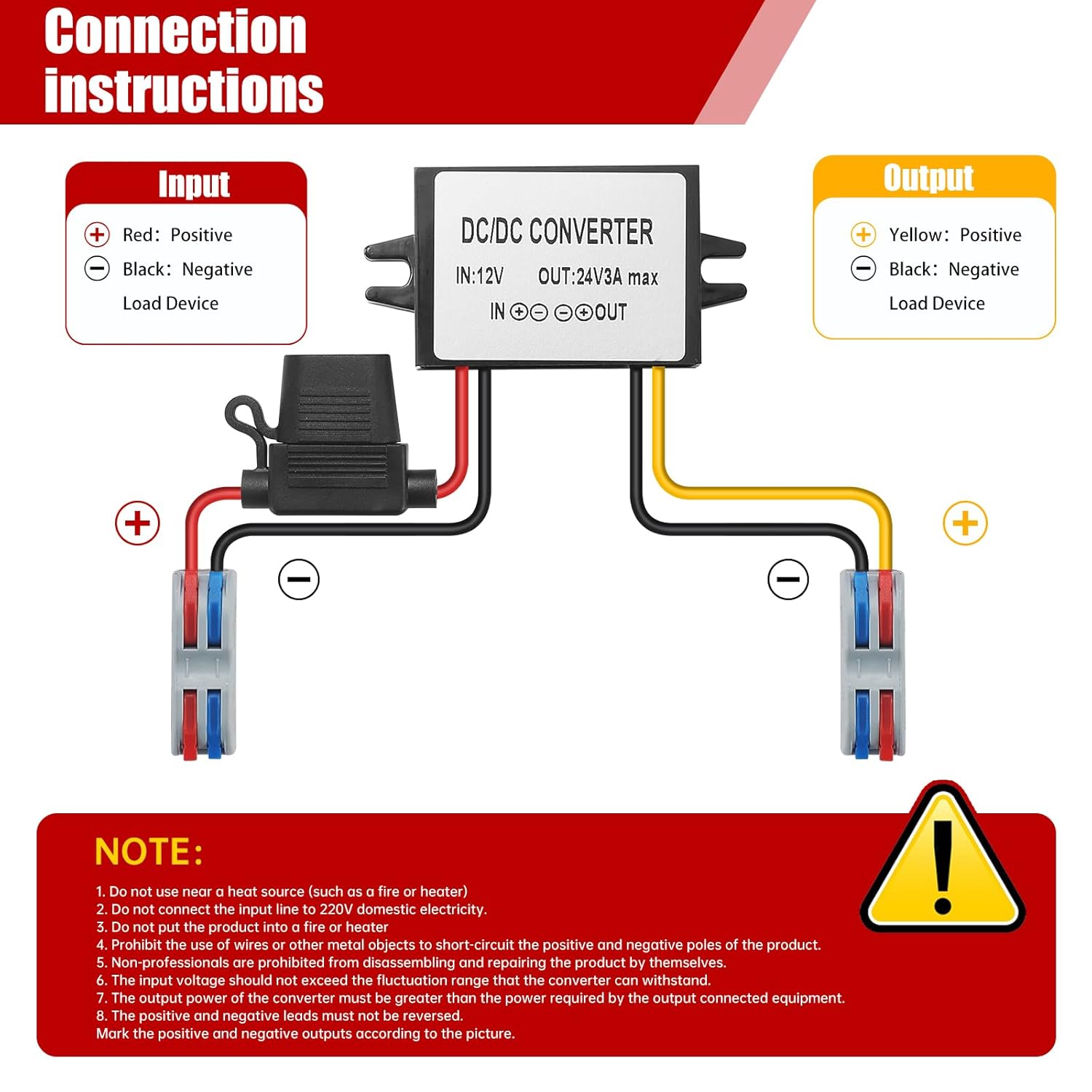

24V 3A voltaj regulörü Bağlantılar:
Input: Red (+) Black (-)
Output: Yellow (+) Black (-)
DC voltage regulator safety guide
The load connected to the output of the voltage regulator should not be higher than the maximum load power, a higher load will damage the voltage regulator.
⚠ If the ambient temperature is too high, the power should be reduced accordingly. Working at low temperatures is a guarantee for long time reliable operation of the power supply unit.
⚠ Do not use the device near heat sources such as fire or heaters.
⚠ Do not connect the input cable to the 220 V household power supply.
⚠ Do not use the device near fire sources or heaters.
⚠ Removal and maintenance of the device by unprofessional persons is prohibited.
⚠ The input voltage must not exceed the surge range of the transformer.
The output power of the inverter must be greater than the power required by the connected device.
Package includes
1x 10V-22V to 24V 3A 72W voltage converter
【12V to 24V Boost Converter】This 12V to 24V voltage converter can convert DC 12V to DC 24V. Voltage input: DC 10-22V, output: DC 24V Max current: 3A 72W WARNING: 1. Please check the input voltage is correct before use. 2. Please check the positive and negative polarity of the power supply before wiring.
Safe with fuse: For the safety of users, our DC converter is equipped with a fuse. If the voltage is too high, the circuit is malfunctioning or abnortic, the transformer will protect the device by stopping working. This also reduces the risk of fire and explosion. Conversion rates of up to 95% with accurate performance. High quality, better performance and longer life.
【Multiple Protection】The regulator has output overcurrent protection, output short circuit protection and over-temperature protection; waterproof (IP67), dustproof, moisture-proof, shockproof, etc. thanks to encapsulation technology. In vehicles, outdoors, underground, etc. for various occasions such as
More convenient connection terminals: The 12V voltage regulator is equipped with lever nut connection terminals for quick connection. No wiring required, which shortens the wiring time and is safe at the same time. Note: Peel off cables about 10mm and place them into terminals. Note: Please connect positive and negative levels correctly, wrong connection may cause permanent damage to the product.
【Applications】Our 12V boost conversion module can be used for integrated wiring, fire alarm system monitoring. Car radio, audio, bus, van, truck display, taxi advertising screen, DIY, solar system, intercom, etc.
